NLED Quasar - 30 Channel LED Controller, USB, DMX, Serial

DISCONTINUED: Replacement is the same device without an enclosure, NLED 30 Channel High Current Controller

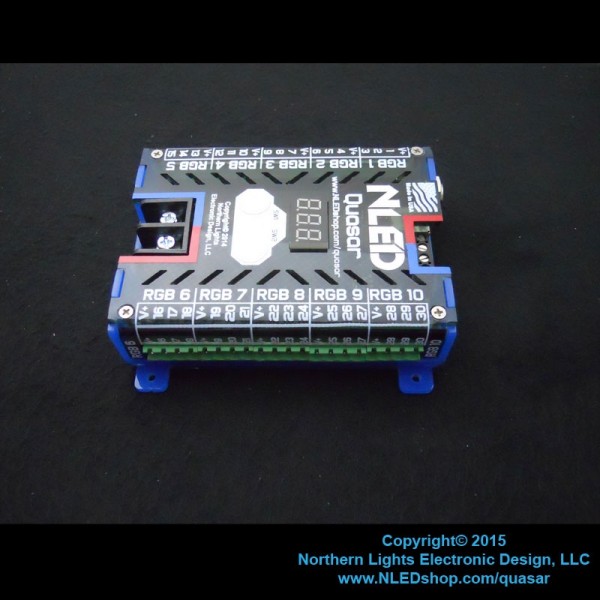

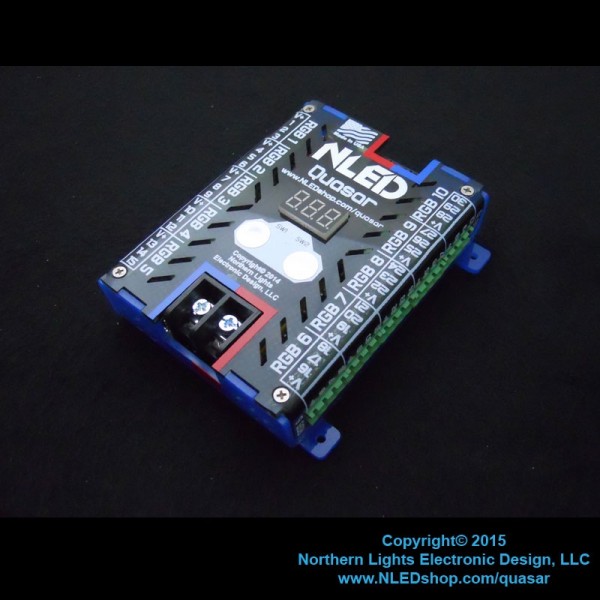

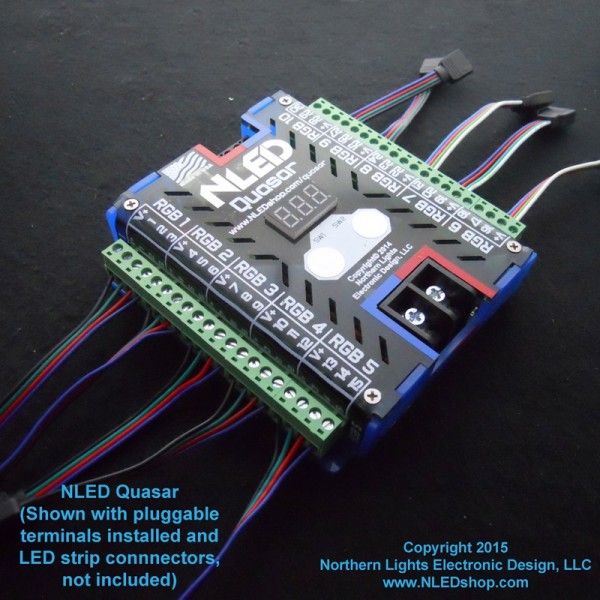

The NLED Quasar from Northern Lights Electronic Design is a fully featured LED controller. Offering USB, DMX-512, and Serial control methods. Each control method offers 8-bit or 16-bit options, as the outputs have 1.5KHz PWM frequency with 12-bit(4096 brightness levels) resolution. Which allows bright, sharp colors with smooth even color transitions. In addition to powerful stand-alone color sequences that the user can create and customize using the free software NLED Aurora Control. It can handle single color, RGB or RGB+W/U.V. LED configurations. The output channels are high powered allowing up to 8 amps each or 75 amps total for the controller, with a maximum of 24 volt input. The output channels offer pluggable terminal blocks, making connecting up the LEDs easy and efficient. All outputs and connections are labled on the acrylic case. The device offers many user configuration options, all accessible through the 3-digit LED display and two buttons, easily change configurations such as the DMX address without DIP switches or charts. Each controller comes with lifetime customer service that strives to keep customers satisfied so they can get the most out of their purchase.

This controller has a single female tiny XLR jack(REAN RT3MPR) for DMX and RS-485 serial input, which requires a custom cable. The drop down below automatically will include a cable with the purchase, please unselect if you do not need the cable. For USB and stand alone control the cable is not required, but is for DMX and serial communication.
