NLED 30 Channel High Current LED Controller (DMX, USB, Serial)

Availability: 16 In stock

As low as: $110.00

Price as configured: $0.00

Controller*:: 30 Channel High Current LED Controller +$110.00
Output Connectors*:

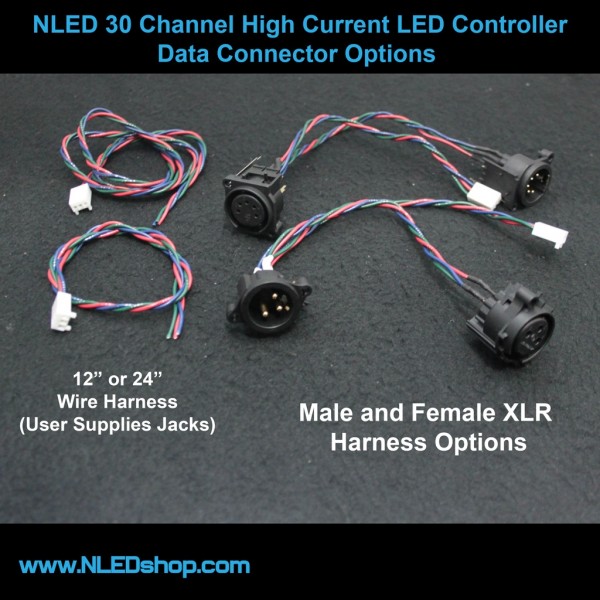

DMX Connectors:
External LED Display:
Optional USB Cable:

* Required Fields

Buy 5 with 2% discount each
Buy 10 with 3% discount each
Buy 20 with 5% discount each

Price as configured: $0.00

Qty:

Details

7/1/2022: Resumed production of this product after numerous requests from customers. New version 2 with improved the design, same specifications and is a drop-in compatible with version 1. Additional stock and large quantity orders are available by request.

This 30 channel LED controller from NLED is a versatile design with the ability to run powerful stand-alone sequences or can be controlled remotely using USB, DMX-512, or standard TTL serial. It is compatible with an external LED display that is used for displaying device states and for adjusting the device's configuration options such as the DMX address, selecting a stand-alone color sequence, or serial baud rate, among others. The software NLED Aurora Control is the easy-to-use software that can be used to create and upload custom color sequences to the controller, for it to run by itself without any data connections. It supports either 30 single color channels, 10 RGB channels, 7 RGB+W/U.V. channels, or a mixture of single/RGB/RGBW can be controlled. Either of the communication methods can be utilized to control the controller's outputs. Each communication method supports 8-bit or 16-bit data, as the controller offers 12-bit(4096 levels) PWM resolution outputs. Best utilized with 12 volt LED strip(any configuration or color) or other high-wattage type LED configurations.

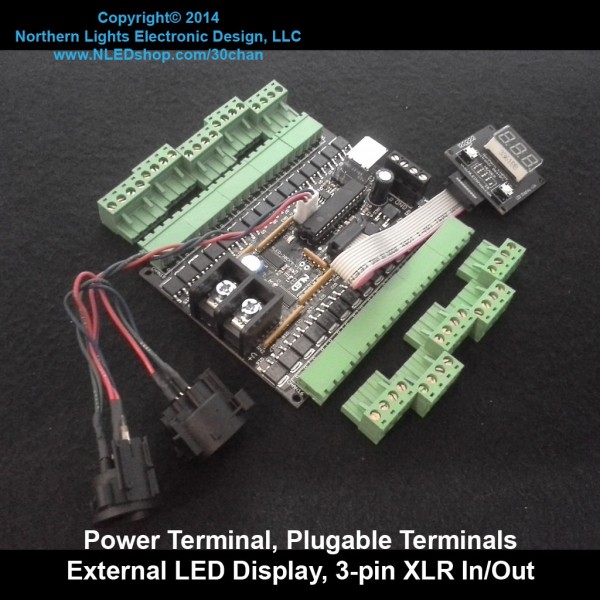

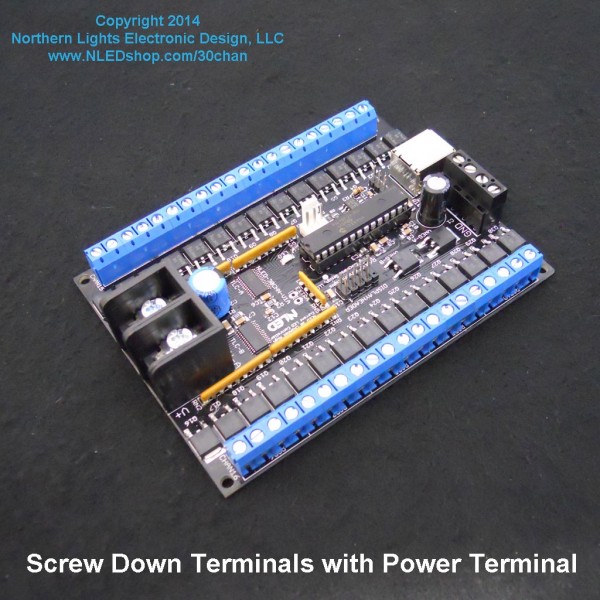

This device comes with a few options, there are 3 styles of terminal options for the outputs, pluggable terminals, screwdown terminals, or None/Empty(User can solder wires directly to the PCB outputs or use their own connectors)

And the Power Terminal options, the Power Terminal is a high quality and high amperage(rated for 45A) screw clamp terminal, but it is tall and more than doubles the device's height. The customer can decide to have it installed on the PCB or to leave the position open, without it installed the user can use the secondary power input or solder wires directly to the PCB. The device has a secondary power input terminal which is the 4-position(V+, V+, GND, GND) black screw down terminal on the opposite side of the PCB.

The options allow the controller to be customized for your usage, whether you need low profile, easy setup, or high current configurations. Please Contact Us with any questions about this, we are glad to help you decide. Click the images below to see the different controller configurations.
