NLED OLED Display Board

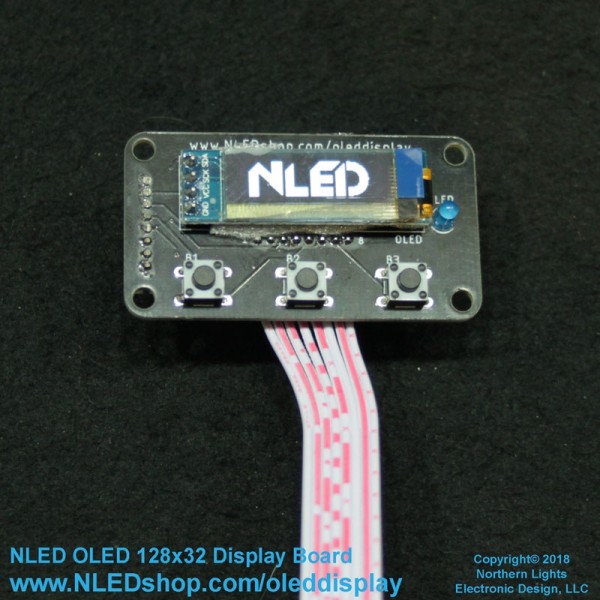

This is a simple carrier board is for the 128x32 I2C OLED display based on the SSD1306 chipset. It has three on board buttons, and two positions for connecting an 8-pin JST-PH(2.0mm pitch) wire harness. Supports both right angle and straight 8-pin JST-PH headers. NLED controllers which utilize a 128x32 OLED display is compatible with this device.

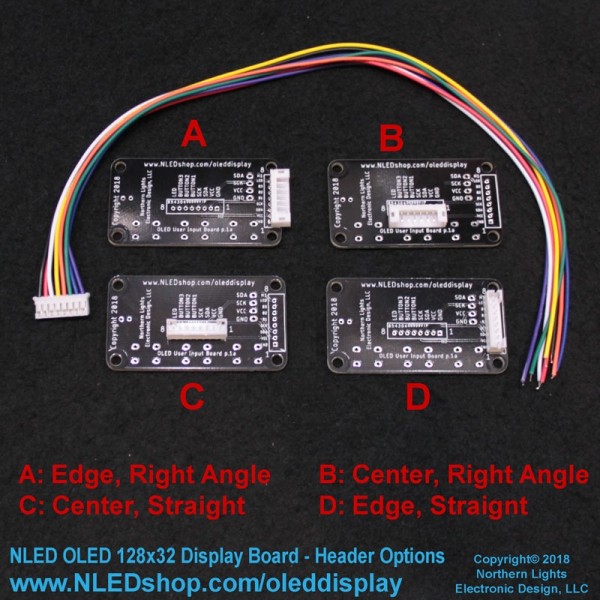

Offering multiple offerings of this device, with either right angle or straight headers, in either of the two positions. For Arduino and other DIY projects, this device is offered as a parts kit. Assemble it how ever you like and use one of the many code examples and libraries to interface with it. All options are offered with a compatible blue or white colored 128x32 OLED display.

Contact Us or place a message during check out if you would like your assembled board with a different header position other than 'B'. When purchased with a compatible NLED controller it comes with a male to male cable, if purchased individually or as a parts kit, it comes with a tailed cable.

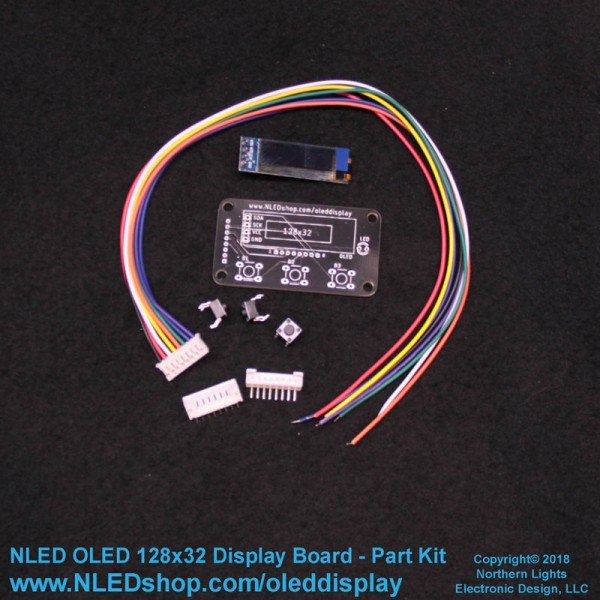

Includes - Assembled:

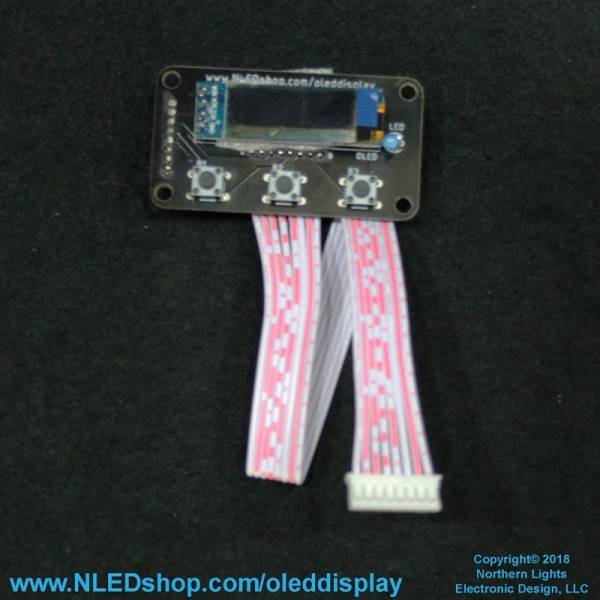

• Carrier board with right angle header (see image 'B') and 128x32 OLED(blue or white available, compatible with other colors)
• Compatible Male to Male cable. Male to tail cable available by request.

Includes - Parts Kit:

• 1x carrier PCB - Bare PCBs Available
• 1x 128x32 Dot OLED Screen - Choice of Colors(Below)
• 1 x right angle header
• 1x straight header
• 1x compatible male to tail cable
• 3x compatible push buttons

Links:

• Device Webpage
• Datasheet

Compatibility

• NLED Quad Constant Current High Power LED Controller
