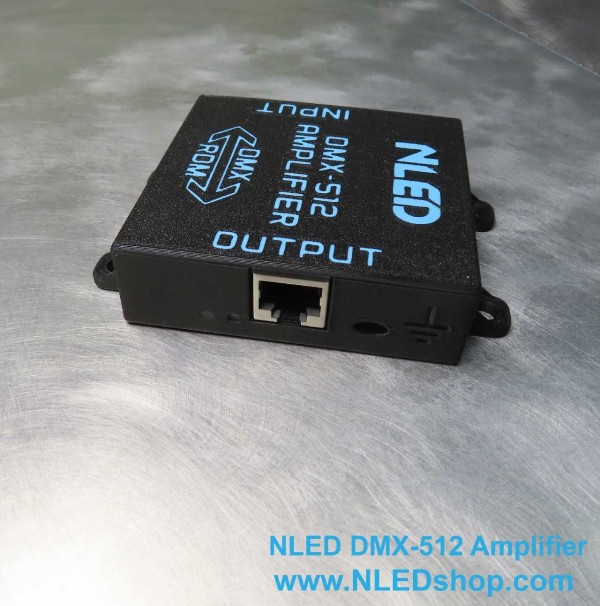

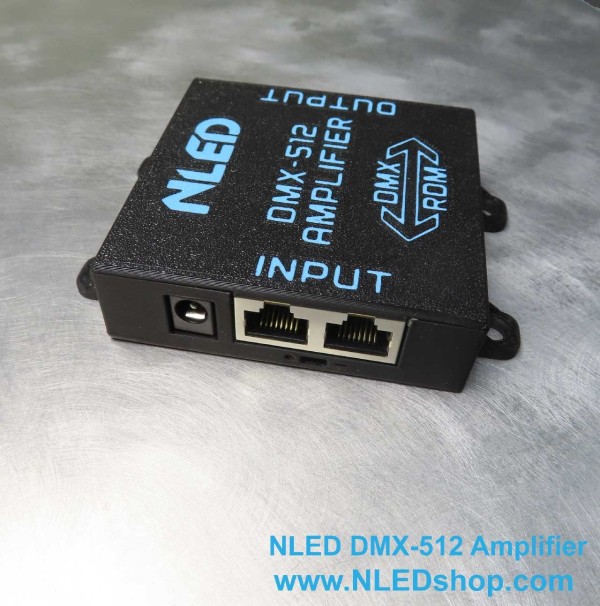

NLED DMX-512 Amplifier - with RJ45 Receptacles

This device allows amplification, splitting, and repeating of DMX-512 networks. With full R.D.M(Remote Device Management) support for bidirectional communication between transmitters and fixtures.

• RJ45 connections to the DMX networks. ESTA standard pinout.
• Full R.D.M.(Remote Device Management) compatibility.
• Compatible with additional alternate START code packets(unidirectional only).
• R.D.M. management of the device.
• Isolated DMX data input, 3000 volts.
• Wide input voltage range.
• Common/Standardized power input connector.
• Optional earthing connection.
• Built in selectable termination via a switch for DMX input.
• ±15kV ESD protection for DMX input and output.
• Short protection for DMX input and output.
• Transient voltage protection for power input.
• Fail safe internal fuse
• Small Size.
• Convenient mounting flanges.
