DMX-512 XLR Carrier Board, 3-pin or 5-pin

Bulk pricing is available for quantities over 25 pieces, please Contact Us

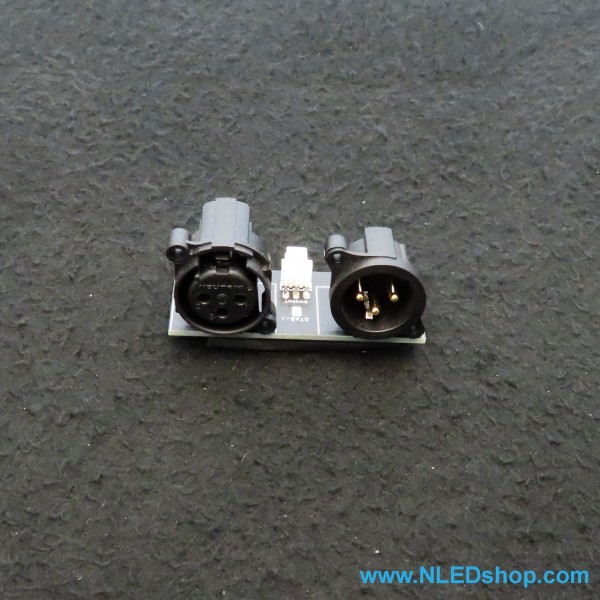

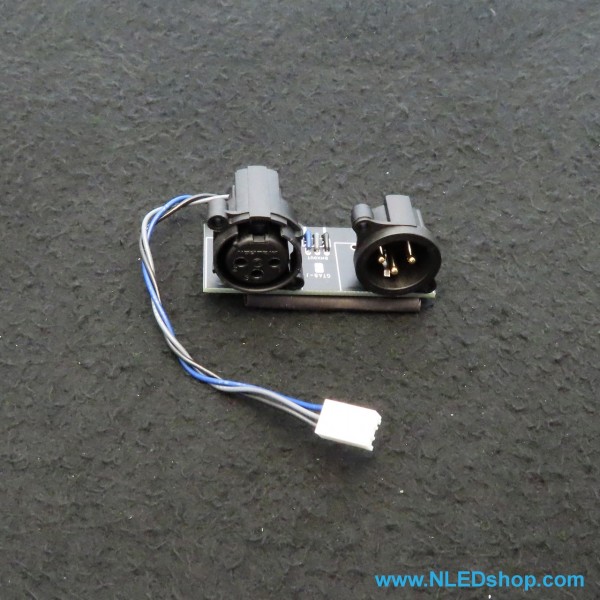

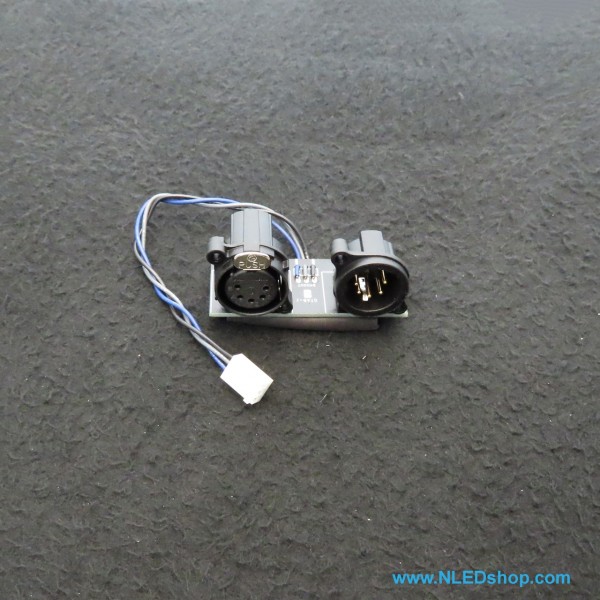

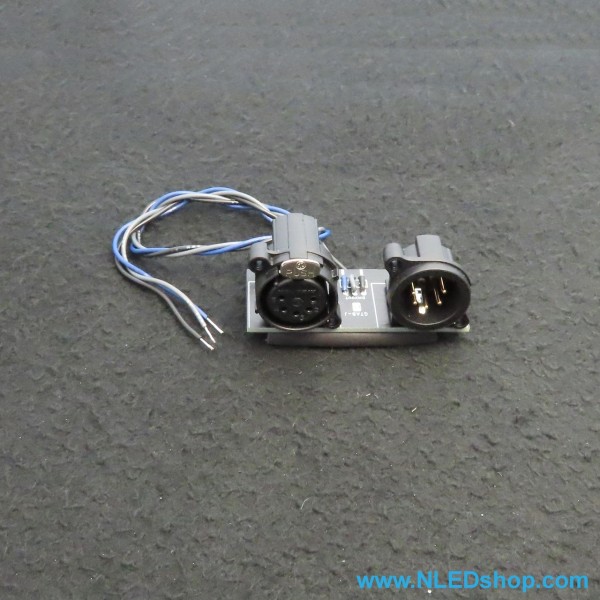

A PCB carrier holds panel mount male and female Neutrik XLRs for use with DMX-512 communication. There are options for high-quality 3-pin or 5-pin XLRs. While 5-pin is the DMX standard, many products utilize 3-pin XLRs due to cost and availability of cables. This product has a 3 position header that supports either a right angle Molex header, or a wire tails. There are tinned and housing based wire tail options, please select the right type for your usage. The male and female connectors are spaced apart 35mm on center, see datasheet for details.

This product does not support RDM. If you would like an RDM version please Contact Us.

• Device Datasheet
• DXF Panel Cutout

Parts Used: See manufacturers website for 3D models and other details.

• 22-05-3031
• NC3MAAH-0 & NC3FAAH-0
• NC5MAH & NC5FAH - Note: These are quite expensive, and no cheap high-quality alternates are available
• 24AWG Wire: Black, Blue, Grey

Tinned Wire Tail Compatibility(may not be complete):

• NLED Pixel Controller Micro
• NLED Pixel Controller Mini
• NLED Four Channel Mini

Housing Wire Tail Compatibility(may not be complete):

• NLED 4 Channel DMX Wash Controller
• NLED 30 Channel High Current LED Controlleri
• NLED 16-Bit RGBW Lamp Controller
